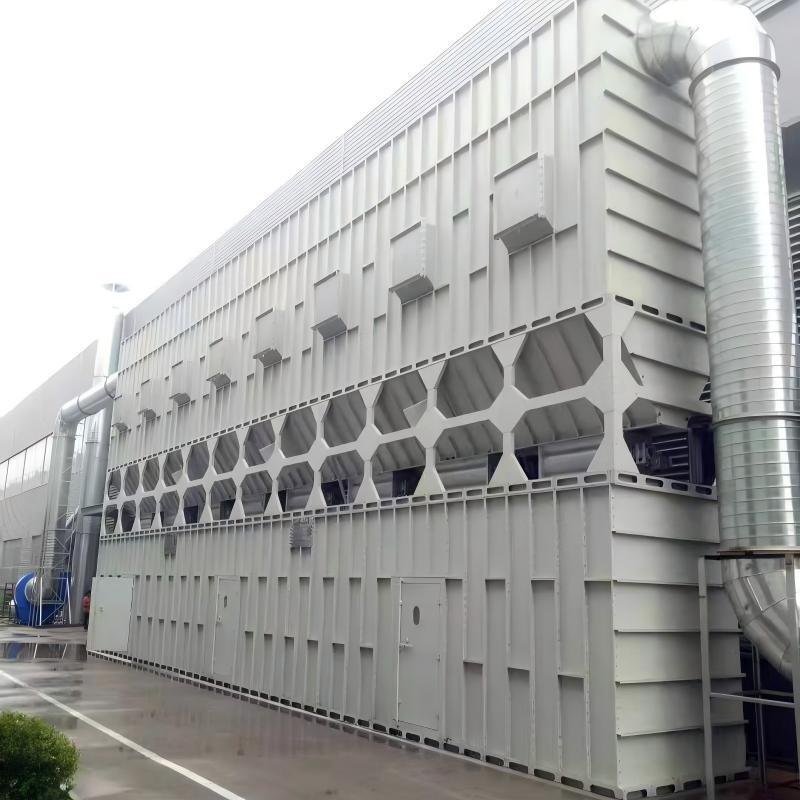

Large-scale wood processing plant dust collection and filtration system

Name: Large-scale wood processing plant dust collection and filtration system
Brand: Hebei Qiaoda Environmental Protection Technology Co., Ltd.
SKU: QDMC-600
Price: 49800 USD
Availability: InStock

Rincian produk

Tempat asal: Cina

Nama merek: QiaoDa

Sertifikasi: CE

Nomor model: QDMC-600

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1

Harga: 49800

Kemasan rincian: Sesuai kebutuhan

Waktu pengiriman: 20 hari kerja

Syarat-syarat pembayaran: T/T

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                industrial dust collection system for wood processing, large-scale wood dust filtration system, wood plant dust collection with warranty


Nama Produk:	Sistem Pengumpulan Debu Industri	Jenis Pemasaran:	Produk terlaris di tahun 2026
Karakteristik:	Desain baru	Bahan:	baja karbon atau baja tahan karat
Volume udara:	314000 m3/jam	Kecepatan Filter:	1,0M/menit
Kisaran suhu pengoperasian:	-20°C hingga 120°C	Disesuaikan:	menerima
Efisiensi Penyaringan:	99,99%	Kondisi:	Baru
Tipe instalasi:	Dalam/luar ruangan	Saring Media:	Tas kain atau elemen filter
jenis:	Kolektor Debu	Filter Tipe Bersih:	Peniup debu otomatis

Nama Produk:	Sistem Pengumpulan Debu Industri
Jenis Pemasaran:	Produk terlaris di tahun 2026
Karakteristik:	Desain baru
Bahan:	baja karbon atau baja tahan karat
Volume udara:	314000 m3/jam
Kecepatan Filter:	1,0M/menit
Kisaran suhu pengoperasian:	-20°C hingga 120°C
Disesuaikan:	menerima
Efisiensi Penyaringan:	99,99%
Kondisi:	Baru
Tipe instalasi:	Dalam/luar ruangan
Saring Media:	Tas kain atau elemen filter
jenis:	Kolektor Debu
Filter Tipe Bersih:	Peniup debu otomatis

Large-scale wood processing plant dust collection and filtration system

Large-Scale Wood Processing Plant Dust Collection and Filtration System

Wood processing operations generate substantial amounts of sawdust, wood chips, and flammable fine wood dust, creating workshop pollution, safety hazards, and mechanical wear. Our professional centralized dust collection and filtration system is custom-engineered for wood cutting, sanding, polishing, and milling applications. Featuring high suction efficiency, explosion-proof performance, and automatic pulse cleaning functions, this system delivers efficient workshop air purification and compliant exhaust emissions.

Technical Specifications

Product Name	Woodworking Dust Collector
Model	Customized
Motor Power	Customized
Air Flow	Customized
Static Pressure	Customized
Filtration Area	Customized
Filter Bag Quantity	Customized
Working Voltage	380V/220V 50/60Hz
Noise Level	≤75dB
Dust Removal Efficiency	≥99.5%
Application	Woodworking Factory, Furniture Processing, Wood Cutting & Polishing
Dimension	Customized

System Operation Process

Negative Pressure Air Suction The system utilizes negative pressure centralized air suction with multi-stage filtration purification. A high-pressure fan creates stable pipeline negative pressure to rapidly capture floating dust and bulk sawdust from various wood processing machines through dedicated suction ports.

Cyclone Separator - Primary Filtration Dust-laden air first enters the cyclone separator for primary coarse filtration. Large wood chips and coarse sawdust are separated via centrifugal gravity and fall into the ash hopper, effectively preventing subsequent filter bag blockage and reducing filtration load.

Bag Filter Chamber - Fine Filtration Fine residual dust enters the bag filter chamber and is trapped on the surface of high-performance polyester filter bags, while clean air penetrates the filter media into the clean air chamber.

Intelligent Pulse Cleaning The intelligent pulse control system periodically triggers electromagnetic pulse valves to spray instant compressed air, blowing accumulated dust off the bag surface into the bottom ash hopper for centralized collection.

Purified Air Discharge Finally, the fully purified air that meets industrial emission standards is discharged outdoors, achieving continuous workshop air purification and maintaining optimal working conditions.
