Welding Fume Extraction Table Stainless steel explosion-proof Dust Collection Table

Name: Welding Fume Extraction Table Stainless steel explosion-proof Dust Collection Table
Brand: Hebei Qiaoda Environmental Protection Technology Co., Ltd.
SKU: QD-HY2000
Price: 1380 USD
Availability: InStock

Rincian produk

Tempat asal: Cina Hebei

Nama merek: QiaoDa

Sertifikasi: CE

Nomor model: QD-HY2000

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1 buah

Harga: 1380

Kemasan rincian: Kotak kayu

Waktu pengiriman: 10 kata hari

Syarat-syarat pembayaran: T/T

Menyediakan kemampuan: 10

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                stainless steel welding fume table, explosion-proof dust collection table, industrial downdraft extraction table


Bahan Penyaringan:	Filter Kartrid	Industri yang Berlaku:	Pabrik Manufaktur
Tenaga motor:	1.5 HP	Fitur keamanan:	Penahan percikan api dan perlindungan beban berlebih
Jaminan:	1 Tahun	Bahan:	Baja dengan lapisan akhir berlapis bubuk
OEM:	Ya	Fungsi Utama:	Menghilangkan Debu Industri
Mencicipi:	bayar untuk sampel	Aplikasi lainnya:	tungku peleburan, pencampuran aspal
Peringkat Mikron:	99,99%	Ukuran Tas Filter:	325*600mm
Laju penyaringan:	99,9%

Bahan Penyaringan:	Filter Kartrid
Industri yang Berlaku:	Pabrik Manufaktur
Tenaga motor:	1.5 HP
Fitur keamanan:	Penahan percikan api dan perlindungan beban berlebih
Jaminan:	1 Tahun
Bahan:	Baja dengan lapisan akhir berlapis bubuk
OEM:	Ya
Fungsi Utama:	Menghilangkan Debu Industri
Mencicipi:	bayar untuk sampel
Aplikasi lainnya:	tungku peleburan, pencampuran aspal
Peringkat Mikron:	99,99%
Ukuran Tas Filter:	325*600mm
Laju penyaringan:	99,9%

Welding Fume Extraction Table Stainless steel explosion-proof Dust Collection Table

Stainless Steel Explosion-Proof Dust Collection Table | Safe Dust Removal for Flammable Metal Grinding Dust

Product Overview

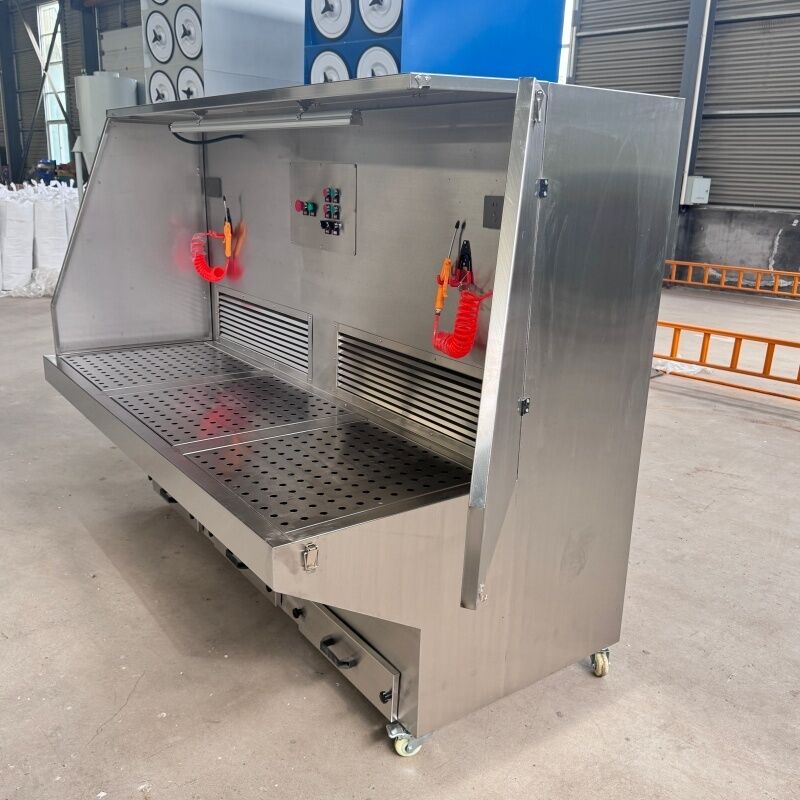

This integrated downdraft dust workbench combines operation platform and high-efficiency dust filtration. The fully stainless steel body with complete explosion-proof configuration is specially built for flammable metal dust from grinding, polishing and cutting operations. It effectively eliminates floating dust and prevents dust explosion risks for enhanced workshop safety.

Core Features

Full 304/316 stainless steel cabinet construction - rust and corrosion resistant with easy cleaning
Complete explosion-proof system including EX motor, explosion-proof electric box, and anti-static filter
Downward suction design with 99.9% dust capture rate and zero dust escape
Automatic pulse filter cleaning system for stable long-term operation
Convenient drawer dust storage for easy ash disposal with optional movable casters
Low noise operation, one-button control, and built-in operation lighting

Explosion-Proof Safety Structure

Explosion-isolated fan and control cabinet, certified for explosive dust zones
Anti-static conductive filter cartridges to prevent static spark ignition
Spark baffle plate blocks grinding sparks from contacting dust layers
Pressure relief vent provides protection against accidental internal explosions
Full anti-static grounding design for complete stainless steel body

Working Principle

Negative pressure generated by the explosion-proof fan draws dust downward through the grid worktop. Large dust particles fall into storage drawers by gravity, while fine dust is trapped by high-efficiency filters. The pulse auto-blow system regularly clears filter dust to maintain stable airflow performance.

Application Scenarios

Ideal for metal polishing, aluminum/copper alloy grinding, hardware deburring, metal casting trimming, aerospace parts processing, battery material grinding, and other flammable dust production lines.

Technical Specifications

Material	304 stainless steel (316L customized available)
Airflow	1500-6000 m³/h customizable
Motor	EX explosion-proof motor, 1.5-5.5KW
Filter	Anti-static polyester/PTFE filter cartridges
Noise Level	≤75dB
Optional Features	Water curtain wet dust removal, side plastic curtains, universal wheels

Packaging & After-Sales Service

Export wooden case packing with anti-rust treatment. Includes 1-year full machine warranty with lifetime spare parts supply. Custom sizes, airflow specifications, and explosion grade configurations available upon request.
